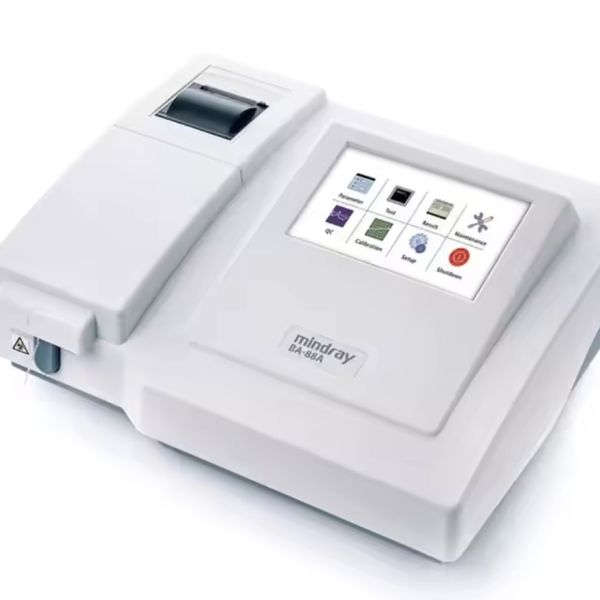

Mindray BA-88A Semi-Automated Biochemistry Analyzer for Routine Clinical Chemistry Tests

Name: Mindray BA88A SemiAutomated Biochemistry Analyzer for Routine Clinical Chemistry Tests
Brand: Mindray
Price: 1 USD

China Mindray BA-88A Semi-Automated Biochemistry Analyzer for Routine Clinical Chemistry Tests wholesale

Brand Name : Mindray

Model Number : BA-88A

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C,T/T,Westen Union,Money Gram,Paypal/VTB

Supply Ability : 1000pcs/month

Delivery Time : 10-15days

Packaging Details : Carton

Product name : Semi-Automated Biochemistry Analyzer

Absorbance range : 0-2.5 A

Stability : < 0.005A/20min

Test speed : Up to 300 tests per hour

Suction volume : Adjustable from 200 μl to 9000 μl

Display screen : 7.0-inch TFT touch screen

Contact Now

Description

The Mindray BA-88A Semi-Automated Biochemistry Analyzer is a versatile and reliable instrument designed for efficient clinical biochemistry testing in small to medium-sized laboratories. Here is a detailed description of Semi-Automated Biochemistry Analyzer's features and capabilities.

The Mindray BA-88A is a semi-automated biochemistry analyzer engineered to perform quantitative analysis of various biological samples, including serum, plasma, urine, and cerebrospinal fluid . Semi-Automated Biochemistry Analyzer combines an open-system architecture with user-friendly operation, supporting a wide range of clinical chemistry tests such as liver function, kidney function, lipids, myocardial enzymes, and electrolyte panels . Its design emphasizes accuracy, operational efficiency, and adaptability to diverse laboratory workflows .

Key Features and Technical Specifications

Analytical Methods and Flexibility: The analyzer supports multiple testing methodologies, including endpoint, kinetic, two-point kinetic/fixed-time, and absorbance testing modes. It features linear and nonlinear calibration and operates using single or dual wavelengths for enhanced accuracy .
Optical System and Measurement: Equipped with a halogen tungsten lamp (6V/10W) , it offers a wavelength range of 340-700 nm and an photometric range of 0 to 2.5 Abs . It utilizes both a flow cell (32μl) and discrete quartz cuvettes for measurements .
Temperature Control and Sample Handling: The instrument provides precise temperature control with selectable settings at 25°C, 30°C, 37°C, and room temperature, maintained by a Peltier system to ensure reaction stability . The sample volume is adjustable from 200μl to 9000μl .
User Interface and Data Management: It features a 7-inch TFT touchscreen for intuitive operation and allows connection of external mouse or keyboard via USB ports . The system can store over 3,000 patient results and 1,000 quality control results, facilitating easy data tracking and management .
Quality Control and Calibration: The BA-88A includes comprehensive quality control functions, support for multi-rule QC, and displays Levey-Jennings charts . Its open-system design allows users to freely modify and save test parameters for up to 200 items .

Intended Applications

This analyzer is well-suited for a variety of healthcare settings, from primary to tertiary hospitals, particularly in clinical laboratories and testing departments . Its key applications include:

Routine Biochemistry: Performing essential tests for liver function (ALT, AST, ALP), kidney function (BUN, Creatinine, Uric Acid), lipids (Cholesterol, Triglycerides), and glucose .
Specialized Testing: Capable of conducting specific protein assays and electrolyte analysis .
Efficiency in Testing: The analyzer can achieve a throughput of up to 120 tests per hour, enhancing laboratory productivity .

Primary Advantages

Operational Efficiency: The combination of a touchscreen interface, pre-programmable test parameters, and dual measurement modes (flow cell and cuvette) streamlines the testing process .
Accuracy and Reliability: Features like dual-wavelength testing and automatic correction for reagent blanks effectively minimize interference, ensuring result accuracy . The Teflon-coated fluidic system reduces carryover contamination .
Low Maintenance and Cost-Effectiveness: The instrument requires minimal daily maintenance and is compatible with a wide range of domestic and imported reagents, offering laboratories flexibility and cost savings .

The Mindray BA-88A Semi-Automated Biochemistry Analyzer effectively balances performance, ease of use, and adaptability, making it a practical and valuable asset for clinical laboratories aiming to deliver reliable diagnostic services.

Specification

Wavelength range	340-670 nm
Result storage	≥ 3,000 sample test results, ≥ 1,000 quality control results
Project parameter storage	≥ 200 test project parameters
Light source	Halogen tungsten lamp (6V / 10W)
Reaction temperatures	25°C, 30°C, 37°C and room temperature
Power supply	100V-240V~, 50/60Hz
